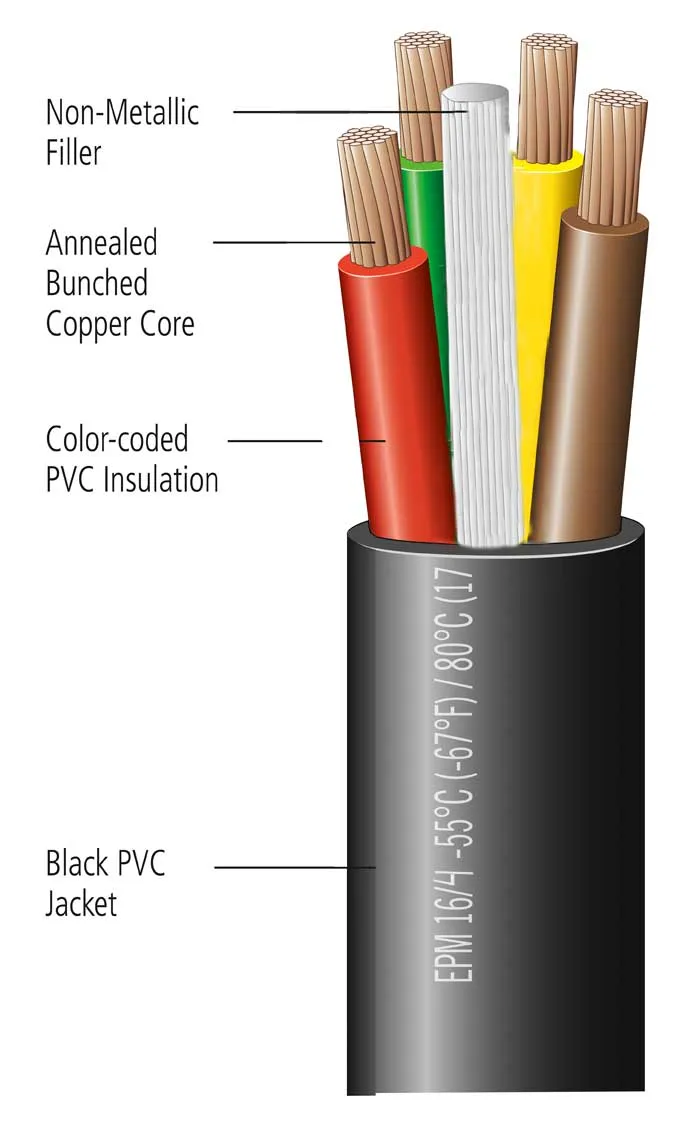

General-purpose primary wires encased in a high quality, PVC jacket. Specially designed for reliability as a integral part of the brake ans safety system. Heay-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enale easy identification.
Voltage: Rated at 60V or Less
Temperature: Rated -65°C (-85°F) to 80°C (176°F)
Specifications: Inner wires meet SAE J1128, SAE J378
Composition: 16 AWG / 4 Conductors (16/4)
Stranding: 19/29
Nominal OD: 0.360"
